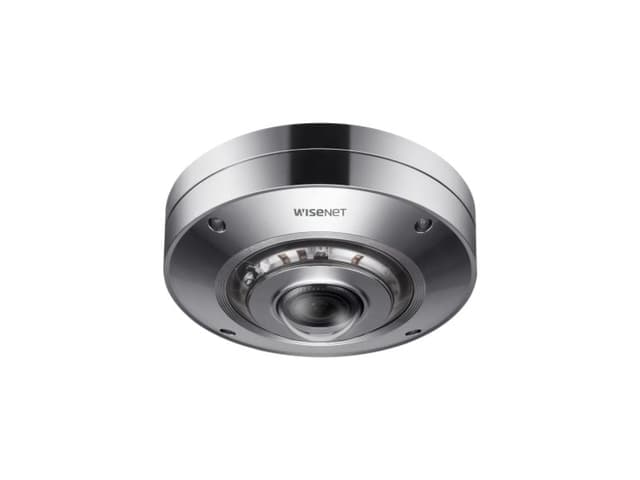

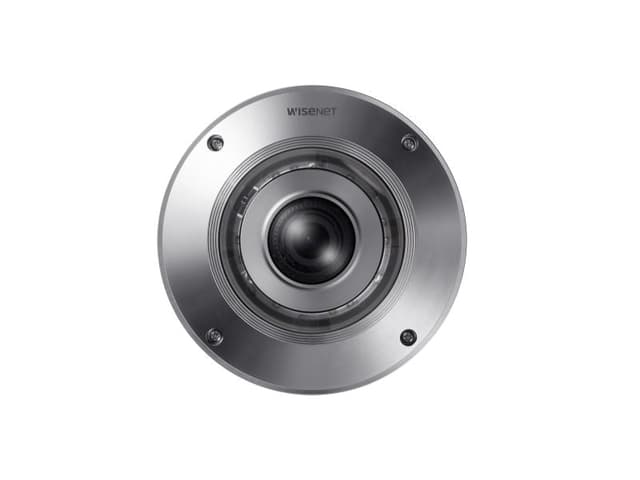

Camera FisheyeCamera XNF-9010RS Stainless IR Fisheye 12MP
Liên hệ báo giá
Giá: Vui lòng liên hệ
Mã sản phẩm: XNF-9010RS
Dòng sản phẩm: Camera Fisheye
Thương hiệu: Hanwha
Hãng sản xuất: Hanwha Vision
Nhà phân phối: Viet Net
- Hàng chính hãngCO/CQ đầy đủ
- Bảo hành chuẩn hãngTheo chính sách của hãng
- Giao hàng toàn quốcKho HCM & Hà Nội
- Kỹ thuật 24/7Tư vấn – lắp đặt
Danh mục:Hanwha VisionCamera giám sátCamera IPCamera FisheyeCamera HanwhaWisenet X
Mô tả sản phẩm
Mô tả camera XNF-9010RS
Camera XNF-9010RS là camera IP Fisheye có góc nhìn rộng 180 độ giúp theo dõi một khu vực rộng lớn với một camera duy nhất. Độ phân giải 10MP mang lại hình ảnh sắc nét giúp xác định các chi tiết nhỏ như khuôn mặt hoặc biển số xe.
Tính năng chống nhiễu giúp cải thiện chất lượng hình ảnh trong điều kiện ánh sáng yếu hoặc ngược sáng
Thông số kỹ thuật chi tiết XNF-9010RS
Theo datasheet chính thức của hãng.
| Hình ảnh | |
|---|---|
| Imaging Device | 1/2.3" 12MP CMOS |
| Resolution | Original view(1:1): 3008x3008~480x480, Double panorama(2:1): 3584x1792~640x320, Single panorama(4:1): 3584x896~640x160, Quad view: 3584x2688~640x480, Q1/Q2/Q3/Q4(4:3): 1792x1344~640x480 |
| Max. Framerate | H.265/H.264:; Original view-Max.30fps/25fps@3008x3008(60Hz/50Hz), Double panorama-Max.30fps/25fps@3584x1792(60Hz/50Hz); Single panorama-Max.30fps/25fps@3584x896(60Hz/50Hz); MJPEG: Max.30fps/25fps@1080x1080(60Hz/50Hz) |
| Min. Illumination | Color: 0.39 Lux (F2.2, 1/30sec), BW : 0Lux(IR LED on) |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for Installation; USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 1.08mm fixed focal |
| Max. Aperture Ratio | F2.2 |
| Angular Field of View | H: 187° / V: 187° / D: 187° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | extremeWDR (120dB) |
| Digital Noise Reduction | SSNRⅤ |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones; - Color: Grey/Green/Red/Blue/Black/White; - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12, 000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Business Intelligence | People counting, Queue management, Heatmap |
| Alarm I/O | 2 configured I/O |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail; Notification via e-mail; SD/SDHC/SDXC or NAS recording at event triggers; Alarm output; PTZ Preset; Handover; Audio playback |
| Audio In | Selectable(mic in/line in); Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max. output level: 1Vrms |
| IR Viewable Length | 8m(26.25ft), Wise IR |
| Mạng | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable; G.726(ADPCM) 8KHz, G.711 8KHz; G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps; AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR; MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast; Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Security | HTTPS(SSL) Login Authentication; Digest Login Authentication; IP Address Filtering; User access log; 802.1X Authentication(EAP-TLS, EAP-LEAP); Device Certificate(Hanwha Techwin Root CA) |
| Application Programming Interface | ONVIF Profile S/G/T; SUNAPI(HTTP API); Wisenet open platform |
| Thông tin chung | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, , Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 1TB(512GBx2) |
| Memory | 4096MB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C ~ +50°C (-40°F ~ +122°F) / Less than 95% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 95% RH |
| Certification | IP66, IP67, IP6K9K, NEMA4X, IK10, IK10+(it can resist impacts of 40 joules), NSF/ANSI Standard 169 – Special Purpose Food Equipment and Devices. |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 12.95W, typical 11W; 12VDC: Max 11W, typical 9.1W |
| Cơ khí | |
| Color / Material | Silver / Stainless(SUS316L), Nylon dome bubble |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø167.9 x 72.1mm(66.10x28.38"), 2, 980g(6.57lb) |
| DORI | |
| Detect (25PPM/ 8PPF) | 34.9m(114.49ft) |
| Observe (63PPM/ 19PPF) | 13.9m(45.60ft) |
| Recognize (125PPM/ 38PPF) | 7.0m(22.96ft) |
| Identify (250PPM/ 76PPF) | 3.5m(11.48ft) |
Datasheet/ Tài liệu thông số kỹ thuật
Tài liệu thông số kỹ thuật (PDF): Datasheet XNF-9010RS.
