Camera nhiệtTNM-C4940TDR Camera nhiệt Bi-Spectrum AI IR
Liên hệ báo giá
- Hàng chính hãngCO/CQ đầy đủ
- Bảo hành chuẩn hãngTheo chính sách của hãng
- Giao hàng toàn quốcKho HCM & Hà Nội
- Kỹ thuật 24/7Tư vấn – lắp đặt
Danh mục:Hanwha VisionCamera giám sátCamera IPCamera nhiệtCamera HanwhaWisenet T
Mô tả sản phẩm
Mô tả camera Hanwha nhiệt TNM-C4940TDR IR AI

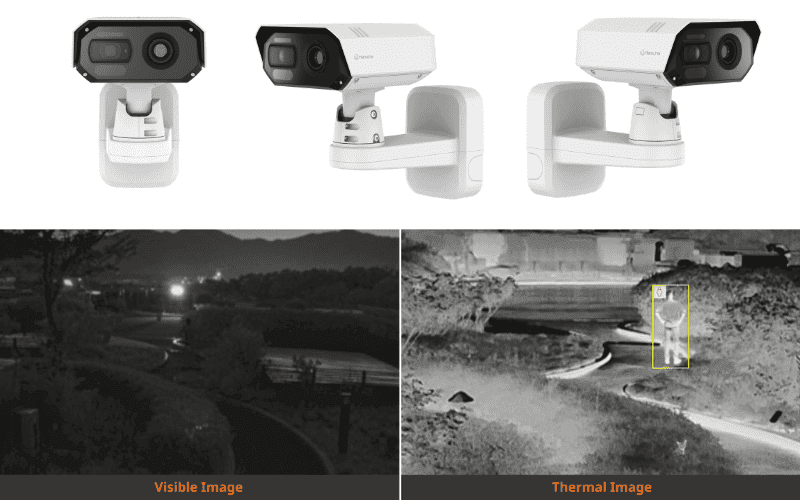

Camera nhiệt TNM-C4940TDR IR AI là một thiết bị giám sát tiên tiến được thiết kế đặc biệt cho môi trường ngoài trời. Camera Bi-Spectrum TNM-C4940TDR IR AI cung cấp giám sát đồng thời bằng cả hình ảnh hiển thị và hình ảnh nhiệt, giúp phát hiện sớm các vấn đề liên quan đến nhiệt độ và nâng cao bảo mật.
Camera TNM-C4940TDR AI được trang bị công nghệ Radiometry AI Bi-Spectrum, cho phép người dùng theo dõi nhiệt độ và hình ảnh của các đối tượng thông qua hai kênh: hình ảnh hiển thị 8MP và hình ảnh nhiệt VGA. Điều này giúp nhận biết các vấn đề nhiệt độ tiềm ẩn và phân loại đối tượng như người hoặc xe.
Không chỉ giám sát mức độ nhiệt độ, TNM-C4940TDR AI còn có khả năng giám sát nhiệt độ từ xa trong khoảng từ -20°C đến 130°C, cho phép người dùng theo dõi nhiệt độ của các đối tượng từ một khoảng cách an toàn.
Ngoài ra, camera này cũng có tính năng khu vực quan tâm đa giác (ROI) với 10 khu vực được chỉ định, giúp người dùng tập trung giám sát nhiệt độ của các vùng quan trọng.

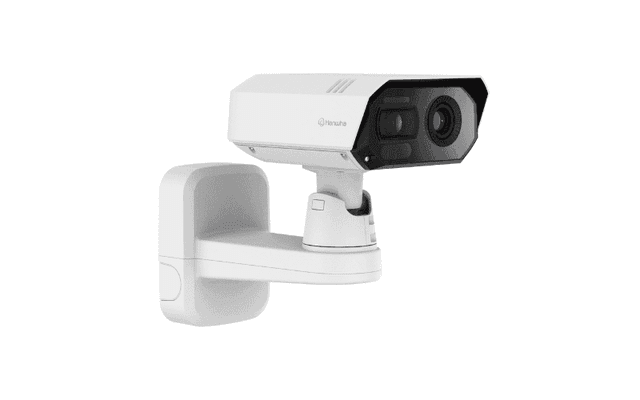

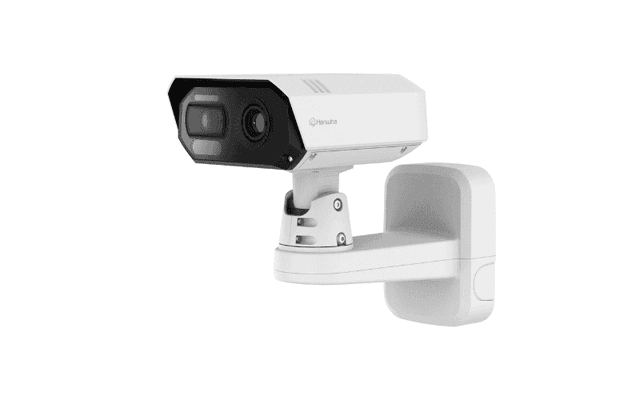

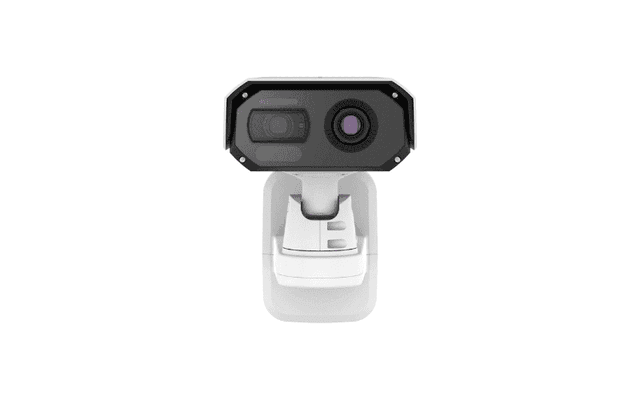

Với thiết kế All-in-One, TNM-C4940TDR AI dễ dàng lắp đặt trên tường hoặc cột, phù hợp cho việc tích hợp vào các hệ thống giám sát ngoại trời.


Xem thêm qua bảng thông số kỹ thuật dưới đây
Thông số kỹ thuật chi tiết TNM-C4940TDR
Theo datasheet chính thức của hãng.
| Video (Thermal) | |
|---|---|
| Imaging Device | Uncooled micro bolometer |
| Resolution | 640x480 (can be scaled up to 1280x960); 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps (Both Channel AI ON - Max. 15fps); MJPEG: Max. 3fps |
| Video (Visible) | |
| Imaging Device | 1/1.8" 8MP CMOS |
| Resolution | 3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps (Both Channel AI ON - Max. 15fps); MJPEG: Max. 1fps |
| Min. Illumination | Color: 0.06Lux(F1.3, 1/30sec); BW: 0.004Lux(F1.3, 1/30sec), 0Lux(IR LED on) |
| Hình ảnh | |
| NETD | <60mK |
| Pixel size | 12㎛ |
| Video Out | USB : Micro USB Type B, 1280x720 for installation |
| Lens (Thermal) | |
| Focal Length (Zoom Ratio) | 9.1mm fixed focal |
| Max. Aperture Ratio | F1.0 |
| Angular Field of View | H: 50.0°, V: 37.0°, D: 63.8° (iFoV: 1.319 mRad ) |
| Min. Object Distance | 3.5m(11.48ft) |
| Focus Control | Fixed |
| Lens (Visible) | |
| Focal Length (Zoom Ratio) | 4.4~9.3mm(2.2x) motorized varifocal |
| Max. Aperture Ratio | F1.3(Wide)~F2.15(Tele) |
| Angular Field of View | H:112.1°(Wide)~47.5°(Tele) / V:58.0°(Wide)~26.6°(Tele) / D:137.5°(Wide)~54.6°(Tele) |
| Min. Object Distance | Wide: 1.75m(5.74ft) / Tele: 5.21m(17.09ft) |
| Focus Control | Simple foucs |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | -170° ~ +170° / -40° ~ 50° / - |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Motion Detection | 8ea, polygonal zones |
| Privacy Masking | 6ea, rectangle zones; - Color: Gray/Black/White |
| Business Intelligence | Temperature Analysis |
| Alarm I/O | 4 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, MQTT subscription |
| Alarm Events | When alarm trigger occurred; - File upload(image): e-mail/FTP; - Notification: e-mail; - Recording: SD/SDHC/SDXC or NAS recording at event triggers; - Alarm output; - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP); - MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Color Palettes | Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom |
| Operational (Visible) | |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | WDR(120dB) |
| Digital Noise Reduction | SSNR V, WiseNR II |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker(1/5~1/12, 000sec); Auto prefer shutter control(Based on AI engine) |
| Analytics | Classified object type: Person/Face/Vehicle/License plate; Attributes: Vehicle(Type:car/bus/truck/motorcycle/bicycle); Support BestShot; Analytics events based on AI engine; - Object detection, Virtual line(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit); Analytics events; - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear); Some of the video analytics only works with people and vehicle detection |
| Light Type | 30m (98.42ft) |
| Operational (Thermal) | |
| Analytics | Classified object type: Person/Vehicle; Support BestShot; Analytics events based on AI engine; - Object detection, Virtual line(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit); Analytics events; - Motion detection |
| Radiometry | |
| Temperature Detect Range | -20°C~130°C(-4°F~266°F) |
| Temperature Accuracy | ±5°C(≤100°C), ±20%(>100°C); This temperature accuracy is based on testing the minimum object distance (MoD) at room temperature as a reference value. |
| Temperature Detection | 10 Polygonal ROI zones, whole FoV area |
| Additional | Hybrid palettes, Spot temperature reading |
| Mạng | |
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law / G.726 Selectable; G.726(ADPCM) 8KHz, G.711 8KHz; G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps; AAC-LC: 48Kbps at 16KHz |
| Bitrate Control | H.264/H.265: CBR or VBR; MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast; Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/T/M; SUNAPI(HTTP API); Wisenet open platform (visible channel only) |
| Network (Thermal) | |
| Smart Codec | WiseStreamⅡ |
| Network (Visible) | |
| Smart Codec | Manual(5ea area), WiseStreamⅢ |
| Bảo mật | |
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
| User authentication | Digest Authentication |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure) |
| Access Control | IP-based access control |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file |
| Audit | Access / System / Event Log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt |
| Security Certificate | TPM with FIPS 140-2 level 2 |
| Thông tin chung | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slots 512GB |
| Memory | 4608MB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C to +60°C(-58°F to +140°F); Start up should be done at above -30°C; 0~95% RH(non-condensing) |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~90% RH |
| Certification | IP66/IP67, IK10, NEMA4X, NEMA TS 2(2.2.8, 2.2.9) |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC |
| Power Consumption | PoE+ : Max 25.5W, Typ 16.0W; 12VDC : Max 21.5W, Typ 14.0W |
| Cơ khí | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | 353.4(W)x287.5(H)x191.2(D)mm(13.92x11.32x7.53"), 4.53kg(9.99lb) |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A; ICES-3(A)/NMB-3(A); CE/UKCA; - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3; VCCI CISPR 32 Class A; RCM AS/NZS CISPR 32 Class A |
| Safety | UL/CSA 62368-1; KC 62368-1 |
| Environment | IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10; NEMA 250 type 4X, NEMA TS-2 |
Datasheet tài liệu thông số kỹ thuật camera nhiệt TNM-C4940TDR IR AI
Tài liệu thông số kỹ thuật (PDF): Datasheet TNM-C4940TDR.
Tra cứu thêm datasheet các thiết bị khác ở mục Tài liệu
—
Trên đây là giới thiệu về camera giám sát của thương hiệu Hanwha mã TNM-C4940TDR thuộc tập đoàn Hanwha Vision. Quý Khách nếu muốn biết thêm chi tiết xin vui lòng liên với phòng kinh doanh (hỗ trợ tư vấn báo giá) hoặc phòng kỹ thuật (tìm hiểu, giải đáp cách lắp đặt sử dụng) của công ty Viet Net để được tư vấn đến từng giải pháp một cách tốt nhất.
Viet Net – Nhà phân phối Camera Hanwha ủy quyền chính thức tại Việt Nam, đồng thời là một trong những công ty chuyên thiết kế, tư vấn, lắp đặt camera quan sát/ giám sát với nhiều năm kinh nghiệm trong nghề.
