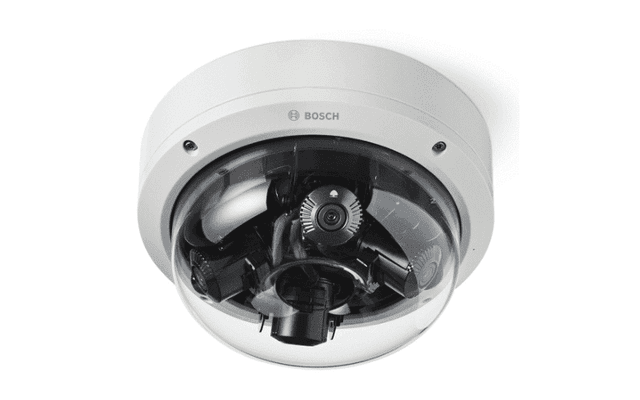

Camera IPCamera Bosch NDM-7703-A 20MP 3.7-7.7mm IP66
Liên hệ báo giá
Giá: Vui lòng liên hệ
Mã sản phẩm: NDM-7703-A
Dòng sản phẩm: Multi imager
Thương hiệu: Bosch
Nhà phân phối: Viet Net
- Hàng chính hãngCO/CQ đầy đủ
- Bảo hành chuẩn hãngTheo chính sách của hãng
- Giao hàng toàn quốcKho HCM & Hà Nội
- Kỹ thuật 24/7Tư vấn – lắp đặt
Danh mục:BoschCamera giám sátCamera IPCamera BoschCamera FlexidomeCamera Multi-imager
Mô tả sản phẩm

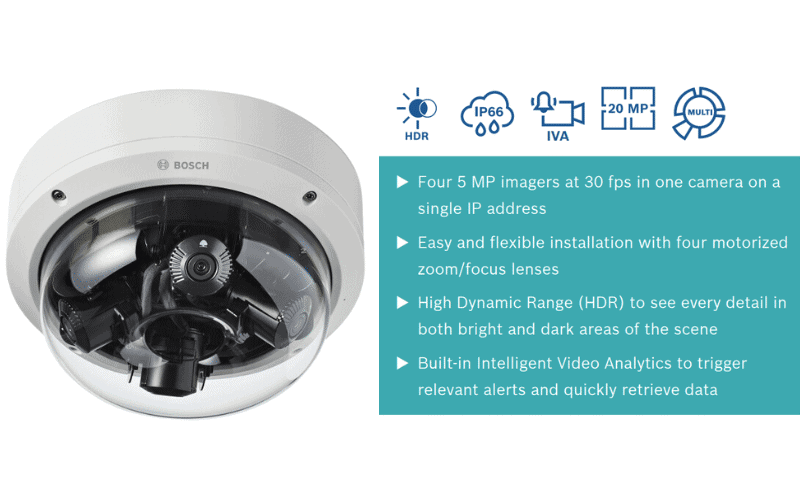

Giới thiệu tổng quan về camera NDM-7703-A
Camera NDM-7703-A thuộc dòng FLEXIDOME multi 7000i là một sản phẩm camera giám sát đa năng với độ phân giải siêu cao và nhiều tính năng mạnh mẽ
- Camera này được trang bị bốn bộ cảm biến hình ảnh 5MP mỗi bộ, tổng cộng đem lại độ phân giải lên đến 20 megapixel. Điều này cho phép bạn quan sát hình ảnh cực kỳ rõ nét và chi tiết, đặc biệt là khi cần theo dõi các khu vực rộng lớn hoặc cần phát hiện chi tiết nhỏ.
- Camera được trang bị bốn ống kính có tính năng motorized zoom/focus, cho phép bạn dễ dàng và linh hoạt trong việc điều chỉnh tiêu cự và tiêu điểm của từng ống kính để phù hợp với cảnh quan và nhu cầu giám sát cụ thể.
- Camera có 4 ống kính motorized zoom/focus cho phép bạn thay đổi tiêu cự và tiêu điểm từ xa thông qua điều khiển từ xa hoặc phần mềm quản lý camera.
- Có tính năng HDR giúp bạn quan sát mọi chi tiết trong cả khu vực sáng và khu vực tối của hình ảnh. Điều này loại bỏ hiện tượng mất thông tin do ánh sáng quá mạnh hoặc quá yếu.
- Đặc biệt, camera NDM-7703-A hỗ trợ cấu hình không dây thông qua USB dongle không dây (được bán riêng), giúp bạn tiết kiệm thời gian và công sức trong quá trình cài đặt.
NDM-7703-A thuộc dòng Multi imager multi 7000i

Thông số kỹ thuật chi tiết NDM-7703-A
Theo datasheet chính thức của hãng.
| Regulatory information | |
|---|---|
| Emission | EN 55032 (Class A); CFR 47 FCC part 15 (Class A) |
| Immunity | EN 50121-4; EN 50130-4 |
| Environmental | EN50130-5, Class IV, Fixed equipment, Outdoor in general; EN IEC 63000: 2018; RoHS EU, 2011/65/EU and 2015/863/EU; WEEE EU, 2012/19/EU |
| Safety | EN 62368-1; EN 60950-22; UL 62368-1 and UL 60950-22; IEC 62368-1 and IEC 60950-22; CAN/CSA-C22.2 No. 62368-1-14; CAN/CSA-C22.2 No. 60950-22-17 |
| Image performance | IEC 62676-5 |
| ONVIF conformance | EN 50132-5-2, EN 62676-2 |
| Impact protection | EN 62262 (IK10) |
| Ingress protection | EN 60529 (IP66) and UL50E (NEMA Type 4X) |
| Marks | CE, FCC, UL, WEEE, RCM, VCCI, CMIM, UKCA, China RoHS, EAC, BIS |
| Great Britain | UKCA FLEXIDOME multi 7000i |
| USA | UL CAP Cybersecurity Assurance Program |
| Global | IEC 62443 Industrial Cyber Security Capability |
| Europe | CE FLEXIDOME multi 7000i |
| Parts included | |
| Camera | 1 |
| Mounting plate | 1 |
| RJ-45 punch-through aid | 1 |
| TR20 Allen key | 1 |
| 2-pin power connector | 1 |
| 8-pin Audio and I/O connector | 1 |
| M20 rubber grommets | 2 |
| Quick installation guide | 1 |
| Safety information | 1 |
| Installer UX labels | 3 |
| Nguồn | |
| Input voltage | PoE+ IEEE 802.3at Type 2, Class 4; 24 VAC ±10%; PoE and auxiliary power can be connected simultaneously for redundant operation |
| Power Consumption (typical / maximum) | PoE+: 10.6 W / 22.1 W; 24 VAC: 9.2 W / 17.6 W |
| Cảm biến | |
| Sensor type | 4x 1/2.7‑inch CMOS |
| Sensitivity | |
| Measured according to IEC 62676 Part 5 (1/25, F1.9) – Color | 0.091 lx |
| Measured according to IEC 62676 Part 5 (1/25, F1.9) – Mono | 0.012 lx |
| Dynamic range | |
| High Dynamic Range | 120 dB WDR |
| HDR Measured according to IEC 62676 Part 5 | 101 dB WDR |
| Quang | |
| Lens | 3.7 - 7.7 mm; F1.9 |
| Adjustment | Motorized zoom/focus |
| Day/Night | Switchable IR-cut filter |
| Viewing angle | Wide: 85.1º x 62º (H x V); Tele: 38.7º x 29.0º (H x V) |
| Viewing angle (maximum combined) | Up to 360º coverage (depending on lens position and tilt) |
| Platform | |
| Common product platform | CPP14.1 |
| Video streaming | |
| Video compression | H.265; H.264; M- JPEG |
| Streaming | Multiple configurable streams in H.264, H.265 and M-JPEG, configurable frame rate and bandwidth.; Regions of Interest (ROI) |
| Camera latency | 120 ms |
| GOP structure | IP |
| Frame rate | 1-30 fps |
| Signal-to-Noise Ratio (SNR) | >55 dB |
| Video resolution (H x V) | |
| Max. resolution | 4x 2592 x 1944 (4:3) @30 fps; 4x 2560 x 1440 (16:9) @30 fps |
| Max. resolution corridor mode | 4x 1944 x 2592 (3:4) @25 fps; 4x 1440 x 2560 (9:16) @25 fps |
| Multiple lower resolutions | available in 4:3 and 16:9 format individually selectable per stream and imager |
| Image setup | |
| Mirror image | On / Off |
| Rotate image | 0° / 90° / 180° / 270° |
| Positioning | Coordinates / Mounting height |
| Video functions | |
| White Balance | 2300 to 10000K, 3 automatic modes (Basic, Standard, Sodium vapor), Manual mode and Hold mode |
| Shutter | Automatic Electronic Shutter (AES); Fixed shutter (1/25[30] to 1/15000) selectable; Default shutter |
| Day/Night | Auto (adjustable switch point), Color, Monochrome |
| Noise reduction | Dynamic noise reduction with 3 levels: Low, Medium and High |
| Scene modes | Standard, Sodium lighting, Sensitivity boost, Backlight, Vibrant, Color only |
| Privacy Masking | Eight independent areas per imager, fully programmable |
| Display stamping | Name; Logo; Time; Alarm message; fully programmable per imager |
| Additional functions | Contrast, Saturation level and control, Brightness, Sharpness, ALC level, Defog |
| Video content analysis | |
| Analysis type | Intelligent Video Analytics, Camera Trainer |
| Alarm rules (combinable) | Any object, Object in field, Line crossing, Enter / leave field, Loitering, Follow route, Idle / removed object, Counting, Occupancy, Crowd density estimation, Condition change, Similarity search, Flow / counter flow |
| Number of rules (simultaneously) | 16 per imager |
| Object filters | Duration, Size, Aspect ratio, Speed, Direction, Color, Object classes (4) |
| Tracking modes | Standard (2D) tracking, 3D tracking, 3D people tracking, Ship tracking, Museum mode |
| Object classes | Person, car, bike, truck |
| Calibration / Geolocation | Automatic, based on gyro sensor, focal length and camera height |
| Additional functions | Tamper detection |
| Local storage | |
| Internal RAM | 5 s pre-alarm recording |
| Memory card slot | Micro SDXC / SDHC / SD card |
| Industrial SD cards | Extreme lifetime and health monitoring support (if supported by the SD card) that provides early service indication. |
| Input/output | |
| Audio line in | 0.6 Vrms, 40 kOhm |
| Audio line out | 1.0 Vrms, 10 kOhm |
| Microphone | 1 integrated microphone (can be disabled) |
| Alarm input | 1 input |
| Alarm input activation | Short or DC 5V activation |
| Alarm output | 1 output |
| Alarm output voltage | 30 VDC, max. load 0.5 A |
| Ethernet | RJ-45 |
| USB | USB 2.0 Type C, for use with wireless USB dongle for setup and commissioning (sold separately, available 2023) |
| Fiber optics (sold separately) | The Fiber Optic Ethernet Media Converter kit (VG4-SFPSCKT) installed inside a Surveillance Cabinet (NDA-U-PA0, NDA-U-PA1 or NDA-U-PA2) provides the fiber optic interface to the mounted camera. |
| Audio streaming | |
| Standard | G.711, 8 kHz sampling rate; L16, 16 kHz sampling rate; AAC-LC, 48 Kbit/s at 16 kHz sampling rate; AAC-LC, 80 Kbit/s at 16 kHz sampling rate |
| Signal-to-Noise Ratio | >50 dB |
| Audio Streaming | Full-duplex / half duplex |
| Mạng | |
| IP | One IP address for all four imagers |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), Diff-; Serv (QoS), LLDP, SOAP, CHAP, digest authentication |
| Ethernet | 10/100/1000 Base-T |
| Interoperability | ONVIF Profile S; ONVIF Profile G; ONVIF Profile M; ONVIF Profile T |
| Data security | |
| Secure Element (“TPM”) | RSA 4096 bit, AES/CBC 256 bit |
| PKI | X.509 certificates |
| Encryption | Full end-to-end encryption with supported VMS; Network: TLS1.0/1.1/1.2/1.3, AES128, AES256; Local storage: XTS-AES |
| Video authentication | checksum, MD5, SHA-1, SHA-256 |
| Firmware protection | Signed firmware, secure boot |
| Cơ khí | |
| Dimensions (D x H) | 220 x 111 mm (8.7 x 4.4 in) |
| Weight | 2.1 kg (4.63 lbs) |
| Color | White (RAL9003) |
| Gyrosensor | Yes, 1 per imager |
| 4-axis lens adjustment | Pan: 0º to 360º; Rotate: -20º to 20º; Tilt: 0º to 105º; Roll: -90º to 90º |
| Dome bubble | Polycarbonate, clear with UV blocking anti-scratch coating |
| Housing | Aluminum with waterproof connection area |
| Mounting | Mounting plate included for surface mount, 4-inch square junction box, single and double gang box |
| Conduit | 3/4-inch NPT (M25) conduit side entry (sold separately) |
| Môi trường | |
| Operating temperature | -50 °C to +55 °C (-58 °F to +131 °F) for continuous operation; -34 °C to +74 °C (-30 °F to +165 °F) according to NEMA TS 2-2003 (R2008), para. 2.1.5.1. using fig. 2.1 test profile |
| Storage temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Cold start temperature | -20 °C (-4 °F) |
| Operating humidity | 5% to 93% RH non condensing; 100% RH condensing |
| Storage humidity | Up to 98% RH |
| Impact protection | IK10 |
| Water/dust protection | IP66 and NEMA Type 4X |
| Thông tin đặt hàng | |
| NDM-7703-A | Fixed dome 20MP 3.7-7.7mm IP66; Order number NDM-7703-A | F.01U.389.263 |
Datasheet tài liệu thông số kỹ thuật NDM-7703-A
Tài liệu thông số kỹ thuật (PDF): Datasheet NDM-7703-A.
