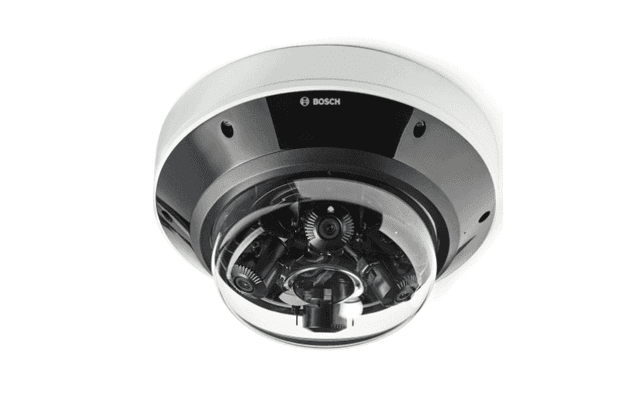

Camera giám sátCamera Bosch NDM-7702-AL Fixed dome 12MP 3.7-7.7mm
Liên hệ báo giá
Giá: Vui lòng liên hệ
Mã sản phẩm: NDM-7702-AL
Dòng sản phẩm: Camera Flexidome
Thương hiệu: Bosch
Nhà phân phối: Viet Net
- Hàng chính hãngCO/CQ đầy đủ
- Bảo hành chuẩn hãngTheo chính sách của hãng
- Giao hàng toàn quốcKho HCM & Hà Nội
- Kỹ thuật 24/7Tư vấn – lắp đặt
Mô tả sản phẩm
Mô tả chi tiết camera NDM-7702-AL

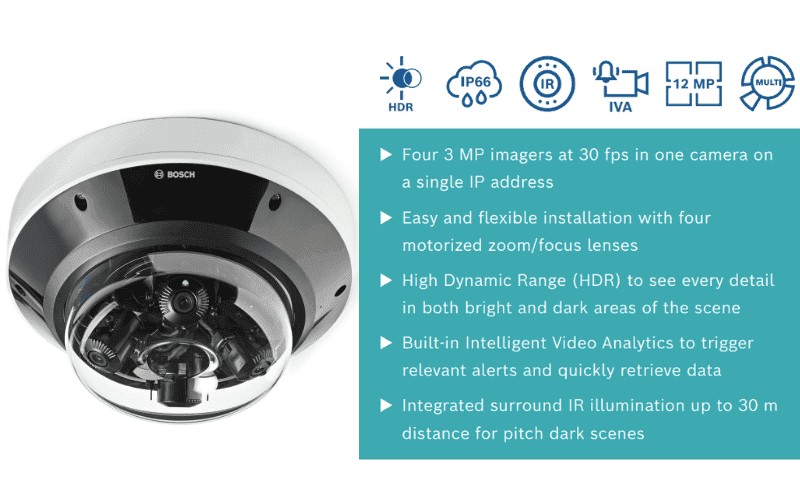

NDM-7702-AL là một camera giám sát cố định với nhiều tính năng ưu việt, được thiết kế để cung cấp hiệu suất cao trong các ứng dụng an ninh và giám sát.
- Bốn cảm biến hình ảnh 3 MP: Camera này tích hợp bốn cảm biến hình ảnh 3 MP, cho phép ghi lại hình ảnh chất lượng cao với khả năng quay video lên đến 30 khung hình mỗi giây trên một địa chỉ IP duy nhất.
- Lắp đặt dễ dàng và linh hoạt: Với bốn ống kính zoom/focus có thể điều chỉnh được tự động, camera này mang lại sự thuận tiện và linh hoạt trong quá trình lắp đặt.
- High Dynamic Range (HDR): Công nghệ HDR giúp camera nhìn rõ mọi chi tiết trong cả khu vực sáng và tối của bức tranh, tối ưu hóa trải nghiệm quan sát.
- Intelligent Video Analytics (IVA): Tích hợp IVA giúp camera nhận diện và phát hiện các sự kiện quan trọng, kích hoạt cảnh báo liên quan và nhanh chóng trích xuất dữ liệu cần thiết.
Thông số kỹ thuật chi tiết NDM-7702-AL
Theo datasheet chính thức của hãng.
| Nguồn | |
|---|---|
| Input voltage | PoE+ 802.3at Type 2 Class 4 with operating temperature -20 °C to +55 °C (-4 °F to +131 °F); PoE++ 802.3bt Type 3 Class 5 with operating temperature -50 °C to +55 °C (-58 °F to +131 °F); 24 VAC ±10%; PoE and auxiliary power can be connected simultaneously for redundant operation |
| Power Consumption (typical / maximum) | PoE+: 10.6 W / 21.8 W (without heater); PoE++: 10.6 W / 42.3 W; 24 VAC: 9.2 W / 36.1 W |
| Cảm biến | |
| Sensor type | 4x 1/2.7-inch CMOS |
| Sensitivity | |
| Measured according to | IEC 62676 Part 5 (1/25, F1.9) |
| Color | 0.091 lx |
| Mono | 0.012 lx |
| With IR | 0 lx |
| Dynamic range | |
| High Dynamic Range | 120 dB WDR |
| HDR Measured according to IEC 62676 Part 5 | 101 dB WDR |
| Night vision | |
| Distance | 30 m (98 ft) |
| LED | 360⁰ LED high efficiency array, 850 nm |
| IR intensity | Adjustable |
| Quang | |
| Lens | 3.7 - 7.7 mm; F1.9 |
| Adjustment | Motorized zoom/focus |
| Day/Night | Switchable IR-cut filter |
| Viewing angle | Wide: 85.1º x 62º (H x V); Tele: 38.7º x 29.0º (H x V) |
| Viewing angle (maximum combined) | Up to 360º coverage (depending on lens position and tilt) |
| Platform | |
| Common product platform | CPP14.1 |
| Video streaming | |
| Video compression | H.265; H.264; M- JPEG |
| Streaming | Multiple configurable streams in H.264, H.265 and M-JPEG, configurable frame rate and bandwidth.; Regions of Interest (ROI) |
| Camera latency | 120 ms |
| GOP structure | IP |
| Frame rate | 1-30 fps |
| Signal-to-Noise Ratio (SNR) | >55 dB |
| Video resolution (H x V) | |
| Max. resolution | 4x 2048 x 1536 (4:3) @30 fps; 4x 1920 x 1080 (16:9) @30 fps |
| Max. resolution corridor mode | 4x 1536 x 2048 (3:4) @30 fps; 4x 1080 x 1920 (9:16) @30 fps |
| Multiple lower resolutions | Multiple lower resolutions available in 4:3 and 16:9 format individually selectable per stream and imager |
| Image setup | |
| Mirror image | On / Off |
| Rotate image | 0° / 90° / 180° / 270° |
| Positioning | Coordinates / Mounting height |
| Video functions | |
| White Balance | 2300 to 10000K, 3 automatic modes (Basic, Standard, Sodium vapor), Manual mode and Hold mode |
| Shutter | Automatic Electronic Shutter (AES); Fixed shutter (1/25[30] to 1/15000) selectable; Default shutter |
| Day/Night | Auto (adjustable switch point), Color, Monochrome |
| Noise reduction | Dynamic noise reduction with 3 levels: Low, Medium and High |
| Scene modes | Standard, Sodium lighting, Sensitivity boost, Backlight, Vibrant, Color only |
| Privacy Masking | Eight independent areas per imager, fully programmable |
| Display stamping | Name; Logo; Time; Alarm message; fully programmable per imager |
| Additional functions | Contrast, Saturation level and control, Brightness, Sharpness, ALC level, Defog |
| Video content analysis | |
| Analysis type | Intelligent Video Analytics, Camera Trainer |
| Alarm rules (combinable) | Any object, Object in field, Line crossing, Enter / leave field, Loitering, Follow route, Idle / removed object, Counting, Occupancy, Crowd density estimation, Condition change, Similarity search, Flow / counter flow |
| Number of rules (simultaneously) | 16 per imager |
| Object filters | Duration, Size, Aspect ratio, Speed, Direction, Color, Object classes (4) |
| Tracking modes | Standard (2D) tracking, 3D tracking, 3D people tracking, Ship tracking, Museum mode |
| Object classes | Person, car, bike, truck |
| Calibration / Geolocation | Automatic, based on gyro sensor, focal length and camera height |
| Additional functions | Tamper detection |
| Local storage | |
| Internal RAM | 5 s pre-alarm recording |
| Memory card slot | Micro SDXC / SDHC / SD card |
| Industrial SD cards | Extreme lifetime and health monitoring support (if supported by the SD card) that provides early service indication. |
| Input/output | |
| Audio line in | 0.6 Vrms, 40 kOhm |
| Audio line out | 1.0 Vrms, 10 kOhm |
| Microphone | 1 integrated microphone (can be disabled) |
| Alarm input | 1 input |
| Alarm input activation | Short or DC 5V activation |
| Alarm output | 1 output |
| Alarm output voltage | 30 VDC, max. load 0.5 A |
| Ethernet | RJ-45 |
| USB | USB 2.0 Type C, for use with wireless USB dongle for setup and commissioning (sold separately, available 2023) |
| Fiber optics (sold separately) | The Fiber Optic Ethernet Media Converter kit (VG4-SFPSCKT) installed inside a Surveillance Cabinet (NDA-U-PA0, NDA-U-PA1 or NDA-U-PA2) provides the fiber optic interface to the mounted camera. |
| Audio streaming | |
| Standard | G.711, 8 kHz sampling rate; L16, 16 kHz sampling rate; AAC-LC, 48 Kbit/s at 16 kHz sampling rate; AAC-LC, 80 Kbit/s at 16 kHz sampling rate |
| Signal-to-Noise Ratio | >50 dB |
| Audio Streaming | Full-duplex / half duplex |
| Mạng | |
| IP | One IP address for all four imagers |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, CHAP, digest authentication |
| Ethernet | 10/100/1000 Base-T |
| Interoperability | ONVIF Profile S; ONVIF Profile G; ONVIF Profile M; ONVIF Profile T |
| Data security | |
| Secure Element (“TPM”) | RSA 4096 bit, AES/CBC 256 bit |
| PKI | X.509 certificates |
| Encryption | Full end-to-end encryption with supported VMS; Network: TLS1.0/1.1/1.2/1.3, AES128, AES256; Local storage: XTS-AES |
| Video authentication | checksum, MD5, SHA-1, SHA-256 |
| Firmware protection | Signed firmware, secure boot |
| Cơ khí | |
| Dimensions (D x H) | 275 x 137 mm (10.8 x 5.4 in) |
| Weight | 3.38 kg (7.45 lbs) |
| Color | White (RAL9003) |
| Gyrosensor | Yes, 1 per imager |
| 4-axis lens adjustment | Pan: 0º to 360º; Rotate: -20º to 20º; Tilt: 0º to 105º; Roll: -90º to 90º |
| Dome bubble | Polycarbonate, clear with UV blocking anti- scratch coating |
| Housing | Aluminum with dehumidifying membrane and waterproof connection area |
| Mounting | Mounting plate included for surface mount, 4-inch square junction box, single and double gang box |
| Conduit | 3/4-inch NPT (M25) conduit side entry (sold separately) |
| Môi trường | |
| Operating temperature | PoE++ (with heater): -50 °C to +55 °C (-58 °F to +131 °F); PoE+ (without heater): -20 °C to +55 °C (-4 °F to +131 °F); -34 °C to +74 °C (-30 °F to +165 °F) according to NEMA TS 2-2003 (R2008), para. 2.1.5.1. using fig. 2.1 test profile |
| Storage temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Cold start temperature | -20 °C (-4 °F) |
| Operating humidity | 5% to 93% RH non condensing; 100% RH condensing |
| Storage humidity | Up to 98% RH |
| Impact protection | IK10 |
| Water/dust protection | IP66 and NEMA Type 4X |
| Regulatory information | |
| Emission | EN 55032 (Class A); CFR 47 FCC part 15 (Class A) |
| Immunity | EN-50121-4; EN 50130-4 |
| Environmental | EN50130-5, Class IV, Fixed equipment, Outdoor in general; EN IEC 63000: 2018; RoHS EU, 2011/65/EU and 2015/863/EU; WEEE EU, 2012/19/EU |
| Safety | EN 62368-1; EN 60950-22; UL 62368-1 and UL 60950-22; IEC 62368-1 and IEC 60950-22; CAN/CSA-C22.2 No. 62368-1-14; CAN/CSA-C22.2 No. 60950-22-17 |
| Image performance | IEC 62676-5 |
| ONVIF conformance | EN 50132-5-2, EN 62676-2 |
| Impact protection | EN 62262 (IK10) |
| Ingress protection | EN 60529 (IP66) and UL50E (NEMA Type 4X) |
| Marks | CE, FCC, UL, WEEE, RCM, VCCI, CMIM, UKCA, China RoHS, EAC, BIS |
| IR lighting | IEC 62471 |
| Parts included | |
| Camera | 1 |
| Mounting plate | 1 |
| RJ-45 punch-through aid | 1 |
| TR20 Allen key | 1 |
| 2-pin power connector | 1 |
| 8-pin Audio and I/O connector | 1 |
| M20 rubber grommets | 2 |
| Quick installation guide | 1 |
| Thông tin đặt hàng | |
| NDM-7702-AL | Fixed dome 12MP 3.7-7.7mm IP66 IR; 12 MP multi-imager camera, four motorized zoom/focus lenses, 30 fps, IVA, H.265, IK10, IP66, integrated IR up to 30 m; NDAA compliant |
| Order number | NDM-7702-AL | F.01U.389.264 |
Datasheet camera NDM-7702-AL
Tài liệu thông số kỹ thuật (PDF): Datasheet NDM-7702-AL.
Tra cứu thêm datasheet các thiết bị khác ở mục Tài liệu
—
