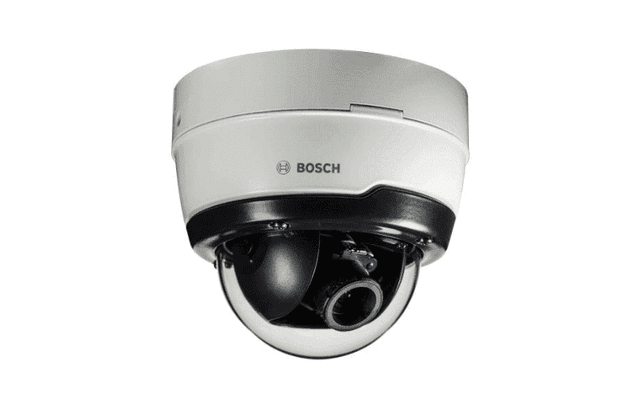

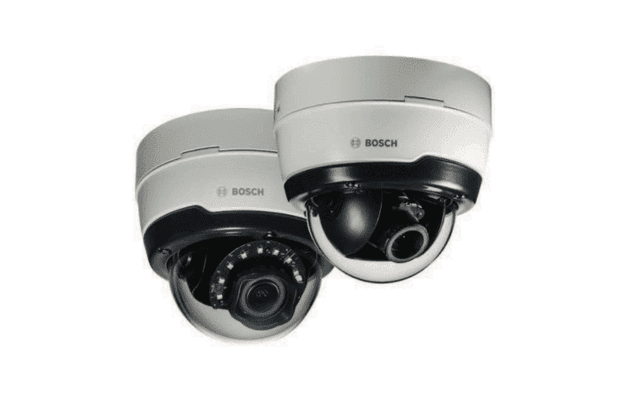

Camera DomeCamera Bosch NDE-5502-AL 2MP HDR 3-9mm IR IP66
Liên hệ báo giá
Giá: Vui lòng liên hệ
Mã sản phẩm: NDE-5502-AL
Dòng sản phẩm: Flexidome
Thương hiệu: Bosch
Nhà phân phối: Viet Net
- Hàng chính hãngCO/CQ đầy đủ
- Bảo hành chuẩn hãngTheo chính sách của hãng
- Giao hàng toàn quốcKho HCM & Hà Nội
- Kỹ thuật 24/7Tư vấn – lắp đặt
Danh mục:BoschCamera giám sátCamera IPCamera DomeCamera BoschCamera Flexidome
Mô tả sản phẩm
Mô tả NDE-5502-AL
NDE-5502-AL mã camera phiên bản IR của dòng camera Flexidome IP starlight 5000i thương hiệu Bosch. Với có độ phân giải 2MP sẽ là camera giám sát chuyên nghiệp mang lại hiệu quả cao hình ảnh HD chất lượng cho các yêu cầu mạng giám sát và an ninh khắt khe. Đồng thời với chuẩn IK10, IP66 vừa bảo vệ chống nước và bụi vừa phù hợp cho những công trình lắp đặt cần khả năng chống phá hoại
Đặc biệt, thấu kính varifocal cho phép bạn chọn vùng phủ sóng phù hợp nhất với ứng dụng của mình. Có rất nhiều tùy chọn lắp đặt, bao gồm lắp đặt trên bề mặt, tường và treo trần.
- Camera NDE-5502-AL tích hợp sẵn Essential Video Analytics để kích hoạt các cảnh báo có liên quan và truy xuất dữ liệu nhanh chóng
- Phiên bản IR với khoảng cách xem 30 m (98 ft)
- Dải động cao để xem mọi chi tiết ở cả vùng sáng và vùng tối của cảnh
Thông số kỹ thuật chi tiết NDE-5502-AL
Theo datasheet chính thức của hãng.
| Bitrate optimized profile (H.265 mode) | |
|---|---|
| Average typical optimized bitrate (kbits/s) - 60 fps, 1080p | 712 |
| Average typical optimized bitrate (kbits/s) - 60 fps, 720p | 525 |
| Average typical optimized bitrate (kbits/s) - 30 fps, 1080p | 600 |
| Average typical optimized bitrate (kbits/s) - 30 fps, 720p | 450 |
| Average typical optimized bitrate (kbits/s) - 12 fps, 1080p | 438 |
| Average typical optimized bitrate (kbits/s) - 12 fps, 720p | 329 |
| Average typical optimized bitrate (kbits/s) - 5 fps, 1080p | 284 |
| Average typical optimized bitrate (kbits/s) - 5 fps, 720p | 213 |
| DORI (1080p camera with 3-9 mm lens) | |
| Detect 25 px/m (8 px/ft) - Distance 3 mm / 9 mm | 32 m / 126 m; 104 ft / 412 ft |
| Detect 25 px/m (8 px/ft) - Horizontal width | 77 m; 252 ft |
| Observe 63 px/m (19 px/ft) - Distance 3 mm / 9 mm | 13 m / 50 m; 41 ft / 164 ft |
| Observe 63 px/m (19 px/ft) - Horizontal width | 30 m; 100 ft |
| Recognize 125 px/m (38 px/ft) - Distance 3 mm / 9 mm | 6 m / 25 m; 21 ft / 82 ft |
| Recognize 125 px/m (38 px/ft) - Horizontal width | 15 m; 50 ft |
| Identify 250 px/m (76 px/ft) - Distance 3 mm / 9 mm | 3 m / 13 m; 10 ft / 41 ft |
| Identify 250 px/m (76 px/ft) - Horizontal width | 8m; 25 ft |
| Regulatory information | |
| HD standards | Complies with the SMPTE 274M-2008 Standard in:; Resolution: 1920x1080; Scan: Progressive; Color representation: complies with ITU-R BT.709; Aspect ratio: 16:9; Frame rate: 25 and 30 frames/s |
| HD standards | Complies with the SMPTE 296M-2001 Standard in:; Resolution: 1280x720; Scan: Progressive; Color representation: complies with ITU-R BT.709; Aspect ratio: 16:9; Frame rate: 25 and 30 frames/s |
| Standards | IEC 62471 (IR version); EN 60950-1; UL 60950-1; UL 60950-22; CAN/CSA-C22.2 NO. 60950-1-03; CAN/CSA-C22.2 NO. 60950-22; EN 50130-4; EN 50130-5; FCC Part15 Subpart B, Class B; EMC directive 2014/30/EU; EN 55032 class B; EN 55024; AS/NZS CISPR 32 (equal to CISPR 32); ICES-003 Class B; VCCI J55022 V2/V3; EN 50121-4:2016; EN 60950-22 |
| ONVIF compliance | EN 50132-5-2; IEC 62676-2-3 |
| Product certifications | CE, FCC, UL, cUL, RCM, CB, VCCI, CMIM, EAC, BIS, KCC |
| Great Britain | UKCA |
| USA | UL CAP Cybersecurity Assurance Program |
| Europe | CE |
| Power (IR version) | |
| Input voltage | +12 VDC ±5%, 24 VAC ±10% or Power-over-Ethernet (48 VDC nominal) |
| Power consumption (DC) | 10.8 W max. |
| Power consumption (AC) | 8.75 W max. |
| Power consumption (PoE) | 9.2 W max. |
| PoE IEEE standard | IEEE 802.3af (802.3at Type 1); Power level: Class 3 |
| Platform | |
| Common product platform | CPP7.3 |
| Cảm biến | |
| Sensor type | 1/2.8‑inch CMOS |
| Effective pixels | 1920 (H) x 1080 (V); 2MP (approx.) |
| Video performance - Sensitivity | |
| Color (3100K, reflectivity 89%, 1/25, F1.3, 30IRE) | 0.0225 lux |
| Mono (3100K, reflectivity 89%, 1/25, F1.3, 30IRE) | 0.0051 lux |
| With IR | 0.0 lx |
| Video performance - Dynamic range | |
| High Dynamic Range | 146 dB WDR |
| Measured according to IEC 62676 Part 5 | 107 dB WDR |
| Video streaming | |
| Video compression | H.265; H.264; M- JPEG |
| Streaming | Multiple configurable streams in H.264 or H.265 and M-JPEG, configurable frame rate and bandwidth.; Regions of Interest (ROI) |
| Camera processing latency | <120 ms (max. average at 1080p60) |
| GOP structure | IP, IBP, IBBP |
| Encoding interval | 1 to 50 [60] fps |
| Encoding regions | Up to 8 areas with encoder quality settings per area |
| Video resolution (H x V) | |
| 1080p HD | 1920 × 1080 |
| Upright mode 1080p | 1080 × 1920 |
| 1.3 MP (16:9) | 1536 × 864 |
| Upright mode 1.3 MP (16:9) | 864 × 1536 |
| 720p | 1280 × 720 |
| Upright mode 720p | 720 × 1280 |
| 480p SD | 640 × 480 |
| SD | 768 × 432 |
| D1 | 720 × 480 |
| Video functions | |
| Day/Night | Color, Monochrome, Auto (adjustable switch points) |
| Adjustable picture settings | Contrast, Saturation, Brightness |
| White Balance | 2500 to 10000K, 4 automatic modes (Basic, Standard, Sodium vapor, Dominant color), Manual mode and Hold mode |
| Shutter | Automatic Electronic Shutter (AES); Fixed (1/25[30] to 1/15000) selectable; Default shutter |
| Backlight compensation | On/off/Intelligent Auto Exposure (IAE) |
| Contrast enhancement | On/off |
| Signal-to-noise ratio (SNR) | >55 dB |
| Noise reduction | Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments |
| Sharpness | Sharpness enhancement level selectable |
| Intelligent defog | Intelligent Defog automatically adjusts parameters for best picture in foggy or misty scenes (switchable) |
| Privacy Masking | Eight independent areas, fully programmable |
| Video Analysis | Essential Video Analytics |
| Scene modes | Standard, Sodium lighting, Fast movement, Sensitivity boost, Dynamic backlight, Vibrant, Color only, Sports & gaming, Retail, License Plate Recognition (LPR) |
| Other functions | Image mirror, Image flip, Pixel counter, Video watermarking, Display stamping, Location |
| Camera rotation | Automatic detection with manual override (0° / 90°/ 180°/ 270°) |
| Video content analysis | |
| Analysis type | Essential Video Analytics |
| Features | Rule based alarms and tracking; Line crossing; Enter /leave field; Follow route; Loitering; Idle / removed object; People counting; Crowd density estimation; 3D tracking; Audio detection (if microphone used) |
| Calibration / Geolocation | Automatic based on gyro / accelerometer data and camera height |
| Tamper detection | Maskable |
| Audio detection | Detection of audio to generate an alarm |
| Night vision (IR version only) | |
| Distance | 45 m (148 ft) |
| LED | 10 LED high efficiency array, 850 nm |
| IR intensity | Adjustable |
| Quang | |
| Lens type | 3 to 9 mm Automatic Varifocal (AVF) lens, IR corrected; DC Iris F1.3 - 360 |
| Lens mount | Board mounted |
| Adjustment | Motorized zoom/focus |
| Iris control | Automatic iris control |
| Day/Night | Switched mechanical IR filter |
| Horizontal field of view | 37° - 106° |
| Vertical field of view | 21° - 55° |
| Input/output | |
| Analog video out | SMB connector, CVBS (PAL/NTSC), 1 Vpp, 75 Ohm, approx. 500 TVL |
| Audio line in | 0.707 Vrms max, 10 kOhm typical |
| Audio line out | 0.707 Vrms at 16 Ohm typical |
| Alarm input | 1 input |
| Alarm input activation | Short or DC 5V activation |
| Alarm output | 1 output |
| Alarm output voltage | 30 VDC, max. load 0.5 A |
| Ethernet | RJ45 |
| Audio streaming | |
| Standard | G.711, 8 kHz sampling rate; L16, 16 kHz sampling rate; AAC-LC, 48 kbps at 16 kHz sampling rate; AAC-LC, 80 kbps at 16 kHz sampling rate |
| Signal-to-Noise Ratio | >50 dB |
| Audio Streaming | Full-duplex / half duplex |
| Local storage | |
| Internal RAM | 5 s pre-alarm recording |
| Memory card slot | Supports up to 32 GB microSDHC / 2 TB microSDXC card. (A memory card of Class 6 or higher is recommended for HD recording) |
| Recording | Continuous recording, ring recording. alarm/events/schedule recording |
| Mạng | |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, CHAP, digest authentication |
| Encryption | TLS1.0/1.2, AES128, AES256 |
| Ethernet | 10/100 Base-T, auto-sensing, half/full duplex |
| Connectivity | Auto-MDIX |
| Interoperability | ONVIF Profile S, ONVIF Profile G, ONVIF Profile M, ONVIF Profile T |
| Cơ khí | |
| 3-axis adjustment (pan/tilt/rotation) | 350º / 130º / 350º |
| Dimensions (Ø x H) | 145 x 131 mm (5.71x 5.14 in) |
| Weight | 1102 g (2.43 lb) |
| Color | RAL 9003, RAL 9017 |
| Housing material | Aluminum |
| Dome bubble | Polycarbonate, clear with anti-scratch coating |
| Môi trường | |
| Operating temperature | -40 ºC to +50 ºC (-40 ºF to +122 ºF) for continuous operation; -34 ºC to +74 ºC (-30 ºF to +165 ºF) according to NEMA TS 2-2003 (R2008), para 2.1.5.1 using fig. 2.1 test profile |
| Storage temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
| Operating humidity | 5% to 93% RH non condensing; 5% to 100% RH condensing |
| Ingress protection | IP66 and NEMA 4X |
| Impact protection | IK10 |
| Thông tin đặt hàng | |
| NDE-5502-AL | Fixed dome 2MP HDR 3-9mm IR IP66; Vandal resistant IP dome camera for outdoor HD 60 fps surveillance with H.265, Essential Video Analytics and integrated infrared.; NDAA compliant; Order number NDE-5502-AL | F.01U.384.634 |
Datasheet tài liệu thông số kỹ thuật NDE-5502-AL
Tài liệu thông số kỹ thuật (PDF): Datasheet NDE-5502-AL.
