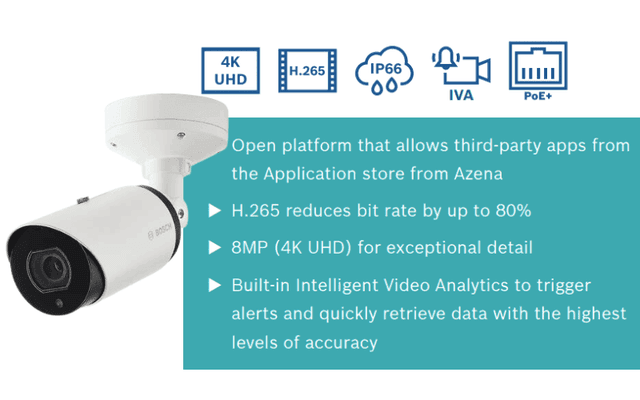

Camera Bosch NBE-7604-AL-OC 8MP inteox IP66 IK10 OCCamera Bosch NBE-7604-AL-OC 8MP inteox IP66 IK10 OC ảnh 2
1/2
Bosch

Danh mục

Camera Bullet

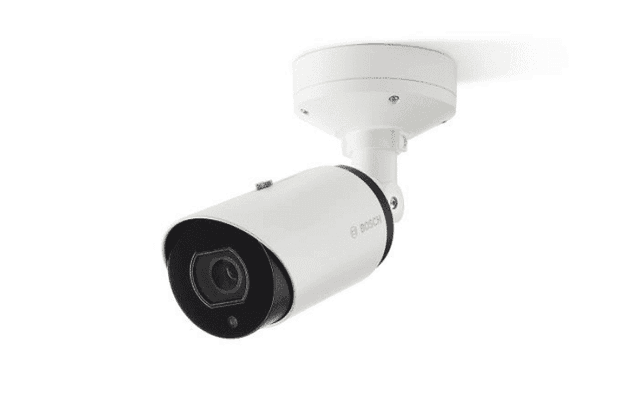

Camera Bosch NBE-7604-AL-OC 8MP inteox IP66 IK10 OC

5,0/5 – 3 lượt đánh giá

Liên hệ báo giá

Giá: Vui lòng liên hệ

Mã sản phẩm: NBE-7604-AL-OC

Dòng sản phẩm: Bullet ( INTEOX Camera)

Thương hiệu: Bosch

Nhà phân phối: Viet Net

Bảo Hành: 24 tháng

Yêu cầu báo giá

Camera Bosch NBE-7604-AL-OC 8MP inteox IP66 IK10 OC

0908 100 676
  • Hàng chính hãngCO/CQ đầy đủ
  • Bảo hành chuẩn hãngTheo chính sách của hãng
  • Giao hàng toàn quốcKho HCM & Hà Nội
  • Kỹ thuật 24/7Tư vấn – lắp đặt

Danh mục:BoschCamera giám sátCamera IPCamera BulletCamera BoschCamera Bosch Bullet

Mô tả sản phẩm

Camera Bullet NBE-7604-AL-OC của Bosch thuộc dòng camera thông minh Dinion inteox 7100i IR của Bosch, đây là camera thế hệ OC mới nhờ ứng dụng trí tuệ nhân tạo (Artificial Intelligent), camera có thể ứng dụng tốt ở môi trường trong nhà hoặc ngoài trời để quản lý giao thông hoặc an ninh khu vực dân cư.

NBE-7604-AL-OC với độ phân giải 4K cung cấp nhiều tính năng phân tích hình ảnh, tích hợp đèn hồng ngoại trong một thiết kế, có thể hoạt động tốt trong môi trường khắc nghiệt và đảm bảo đáp ứng nhiều yêu cầu khác nhau của khách hàng.

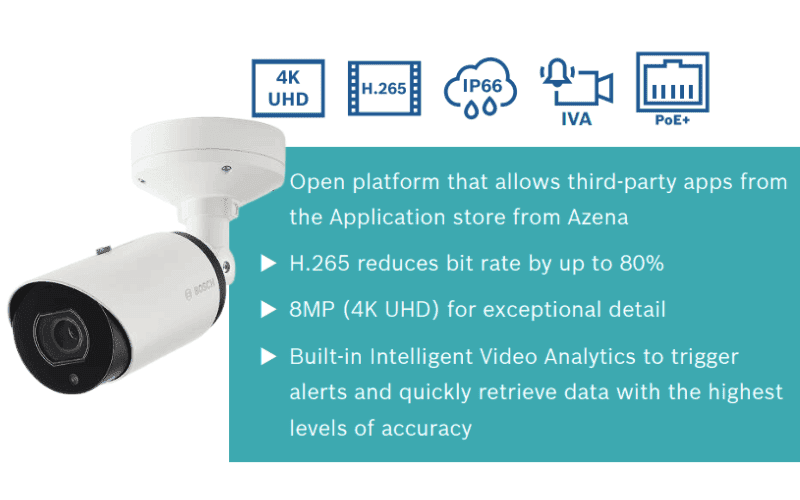

NBE-7604-AL-OC

Thông số kỹ thuật chi tiết NBE-7604-AL-OC

Theo datasheet chính thức của hãng.

DORI (8 MP camera with 3.6 mm - 10 mm lens)
Detect 25 px/m (8 px/ft) - Distance 3.6 mm/10 mm68 m/181 m; (212 ft/565 ft)
Detect 25 px/m (8 px/ft) - Horizontal width154 m; (480 ft)
Observe 63 px/m (19 px/ft) - Distance 3.6 mm/10 mm27 m/72 m; (89 ft/238 ft)
Observe 63 px/m (19 px/ft) - Horizontal width61 m; (202 ft)
Recognize 125 px/m (38 px/ft) - Distance 3.6 mm/10 mm14 m/36 m; (45 ft/119 ft)
Recognize 125 px/m (38 px/ft) - Horizontal width31 m; (101.1 ft)
Identify 250 px/m (76 px/ft) - Distance 3.6 mm/10 mm7 m/18 m; (22 ft/60 ft)
Identify 250 px/m (76 px/ft) - Horizontal width15 m; (50.5 ft)
Regulatory information
EmissionEN 50121-4; EN 55032 (class B); CFR 47 FCC part 15 (class B)
ImmunityEN 50121-4; EN 50130-4
EnvironmentalEN 50130-5 (Class IV); EN 50581; RoHS EU, 2011/65/EU; WEEE EU, 2012/19/EU; Packaging EU, 94/62/EU; N2580-1 (Bosch standard); N33.6 (Bosch standard)
SafetyEN 62368-1; UL 62368-1; IEC 62368-1; EN 62471 (Eye safety for IR)
ONVIF conformanceEN 50132-5-2; EN 62676-2
Impact protectionEN 62262 (IK10)
Water/dust protectionEN 60529 (IP66); UL50E (Type 4X)
MarksCE, FCC, WEEE, cULus, C-Tick, VCCI
Great BritainUKCA
EuropeCE
Parts included
DINION inteox 7100i IR camera1
Quick Installation Guide1
Safety instructions1
Nguồn
Input voltagePoE 802.3at Type 2, Class 4; 24 VAC ±10%; PoE and auxiliary power can be connected simultaneously for redundant operation
Power Consumption (typical / maximum)PoE+: Max. 25.5 W; 24 VAC: 7.1 W - 25 W/ 13 W - 25 W
Cảm biến
Sensor type1/1.8‑inch CMOS
Total sensor pixels3840 (H) x 2160 (V), 8MP (approx.)
Video performance - Sensitivity
Color (3200K, reflectivity 89%, F1.5, 30IRE)0.189 lux
Mono (3200K, reflectivity 89%, F1.5, 30IRE)0.0316 lux
With IR0.0 lx
Dynamic range
Wide Dynamic Range87 dB WDR
Measured according to IEC 62676 Part 567 dB WDR
Night vision
Distance40 m (131 ft)
LEDHigh efficiency LED array, 850 nm
Quang
Lens3.6 to 10 mm, P-iris lens (IR corrected); F-stop 1.5
AdjustmentMotorized zoom/focus
Iris controlP-iris control
Day/NightSwitchable IR-cut filter
Field of viewWide: 97° x 53° (H x V); Tele: 46° x 30° (H x V)
Platform
Common product platformCPP13
Video streaming
Video compressionH.265; H.264; M- JPEG
Sensor modes30 fps, 3840 x 2160 (8 MP)
StreamingMultiple configurable streams in H.264, H.265 and M-JPEG, configurable frame rate and bandwidth.; Regions of Interest (ROI); Bosch Intelligent Streaming
Camera latency120 ms (8 MP, 30 fps)
GOP structureIP
Frame rate1-30 fps
Signal-to-Noise Ratio (SNR)>55 dB
Video resolution (H x V)
4K UHD3840 x 2160
5 MP2560 x 1440
1080p HD1920 x 1080
1.3 MP1536 x 864
720p HD1280 x 720
480p SD768 x 342
SD 4:3 (cropped)512 x 480
Camera installation
Mirror imageOn / Off
Rotate0° / 90° upright / 180° / 270° upright
Camera LEDAutomatic
Camera view wizardZoom, autofocus
Video functions - color
Exposure controlAutomatic, Manual
Manual exposure control adjustmentsShutter, Gain, Iris
Day / NightAutomatic, Color, Monochrome
Zoom position / Focus positionOne push auto focus
White balanceAutomatic, Manual
Manual white balance adjustmentsRed gain, Blue gain
Video content analysis
Analysis typeIntelligent Video Analytics
ConfigurationsSilent VCA / Profile1/2 / Scheduled / Event triggered
Alarm rules (combinable)Any object, Object in field, Line crossing, Enter / leave field, Loitering, Follow route, Idle / removed object, Counting, Occupancy, Crowd density estimation, Condition change, Similarity search, Flow / counter flow
Object filtersDuration, Size, Aspect ratio, Speed, Direction, Color, Object classes (4)
Tracking modesStandard (2D) tracking, 3D tracking, 3D people tracking, Ship tracking, Museum mode
Calibration / GeolocationAutomatic, based on gyro sensor, focal length and camera height
Tamper detectionMaskable
Additional functions
Privacy MaskingOne area, fully programmable
Display stampingName; Logo; Time; Alarm message
Local storage
Memory card slotsmicroSDHC / microSDXC SD card slot
Industrial SD cardsExtreme lifetime
Input/output
Audio signal line in10 kOhm typical; 1 Vrms max
Audio signal line out16 Ohm typical; output 0.875 Vrms
Alarm input1 input, activation voltage: +3.3 VDC to +40 VDC
Alarm output2 outputs, maximum: 30 VAC or +40 VDC, 0.5 A continuous, 10 VA
EthernetRJ45
Surge protectionEthernet: 1 kV to ground (8/20 µs pulse)
Audio streaming
StandardG.711, 8 kHz sampling rate; L16, 16 kHz sampling rate; AAC-LC, 48 kbps at 16 kHz sampling rate; AAC-LC, 80 kbps at 16 kHz sampling rate
Signal-to-Noise Ratio>50 dB
Audio StreamingFull-duplex / half duplex
Mạng
ProtocolsIPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, NTP (SNTP), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, CHAP, digest authentication
EncryptionTLS1.0/1.2, AES128, AES256
Ethernet10/100/1000 Base-T, auto-sensing, half/full duplex
ConnectivityAuto-MDIX
InteroperabilityONVIF Profile S; ONVIF Profile GONVIF Profile M; ONVIF Profile T
Data security
Secure Element (“TPM”)RSA 4096 bit, AES/CBC 256 bit
PKIX.509 certificates
EncryptionFull end-to-end encryption with supported VMS; Network: TLS1.0/1.2, AES128, AES256; Local storage: XTS-AES
Video authenticationchecksum, MD5, SHA-1, SHA-256
Cơ khí
Dimensions (Ø x H)96 x 330 mm (3.8 x 13 in.)
Weight (approx.)2.1 kg (4.63 lbs)
MountingSurface mount
ColorWhite (RAL9003)
Môi trường
Operating temperature (continuous)-40 ºC to +50 ºC (-40 ºF to +122 ºF)
Storage temperature-30 ºC to +70 ºC (-22 ºF to +158 ºF)
Humidity5% to 93% relative humidity non condensing; 5% to 100% relative humidity condensing
Storage humidityUp to 98% relative humidity
Impact resistanceIK10
Water/dust protectionIP 66 and NEMA type 4X
Country of originTaiwan
Thông tin đặt hàng
NBE-7604-AL-OCBullet camera 8MP inteox IP66 IK10 OC; Fixed bullet camera 8MP H.265 IVA IP66 IK10 IR running an open camera platform, with pre-installed object classification app; NDAA compliant; Order number NBE-7604-AL-OC | F.01U.386.377

Datasheet tài liệu thông số kỹ thuật NBE-7604-AL-OC

Tài liệu thông số kỹ thuật (PDF): Datasheet NBE-7604-AL-OC.

Datasheet NBE-7604-AL-OC

Tra cứu thêm datasheet các thiết bị khác ở mục Tài liệu

—

Trên đây là giới thiệu về camera giám sát, camera (Bullet) mã NBE-7604-AL-OC sản phẩm thuộc dòng camera thông mình Dinion inteox 7100i IR của thương hiệu Bosch – Thương hiệu Viet Net là NPP ủy quyền.

Quý Khách nếu muốn biết thêm chi tiết xin vui lòng liên với phòng kinh doanh (hỗ trợ tư vấn báo giá) hoặc phòng kỹ thuật của công ty Viet Net để được tư vấn đến từng giải pháp một cách tốt nhất.

Viet Net – Nhà phân phối sản phẩm và giải pháp Bosch ủy quyền chính thức tại Việt Nam, đồng thời là một trong những công ty chuyên thiết kế, tư vấn, lắp đặt camera quan sát/ giám sát với nhiều năm kinh nghiệm trong nghề.
