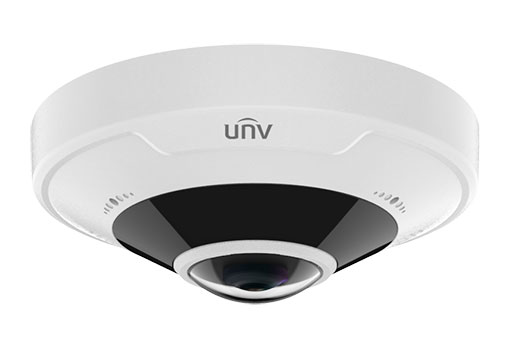

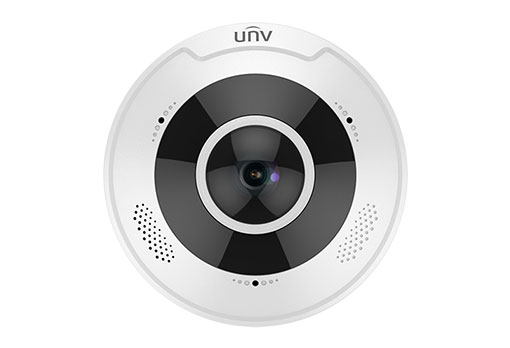

IPC86CEB-AF18KC-I0 – Camera giám sát Uniview

Đánh giá sản phẩm

Liên hệ báo giá

Camera giám sát Uniview IPC86CEB-AF18KC-I0. High quality image with 12 megapixel (MP), 1/1.7’’ cảm biến CMOS sensor, Chuẩn chống nước IP67 protection. Bảo hành chính hãng, lắp đặt tận nơi.

Yêu cầu báo giá

IPC86CEB-AF18KC-I0 – Camera giám sát Uniview

0908 100 676
  • Hàng chính hãngCO/CQ đầy đủ
  • Bảo hành chuẩn hãngTheo chính sách của hãng
  • Giao hàng toàn quốcKho HCM & Hà Nội
  • Kỹ thuật 24/7Tư vấn – lắp đặt

Danh mục:Camera giám sátCamera IPUniview

Mô tả sản phẩm

Giới thiệu Camera giám sát Uniview IPC86CEB-AF18KC-I0

Camera giám sát Uniview IPC86CEB-AF18KC-I0 (IPC86CEB-AF18KC-I0) là dòng camera giám sát cao cấp của Zhejiang Uniview Technologies — thương hiệu camera IP top 3 toàn cầu. Sản phẩm phù hợp cho các hệ thống giám sát chuyên nghiệp đòi hỏi chất lượng hình ảnh sắc nét, hoạt động ổn định 24/7 và tích hợp linh hoạt với hệ thống đầu ghi NVR/VMS.

Tính năng nổi bật

  • High quality image with 12 megapixel (MP), 1/1.7’’ cảm biến CMOS sensor
  • Max 4000*3000 resolution
  • Codec Ultra265, H.265, H.264, MJPEG
  • Ultra góc rộng lens, 360° toàn cảnh image
  • Embedded infrared light, 360° fill-in light, tới 15m (49ft) khoảng cách hồng ngoại
  • Multiple decoding modes, supports software and hardware modes, provides interactive dynamic view
  • Heatmap: Working with management platform, the data of moving objects is counted in real time on an intuitive color map
  • Built-in microphone & speaker, two-way talk supported
  • Supports 256 G Micro SD card
  • Chống va đập IK10 vandal resistant
  • Chuẩn chống nước IP67 protection

Thông số kỹ thuật chi tiết IPC86CEB-AF18KC-I0

Theo datasheet chính thức của hãng.

Thông tin chung
ModelIPC86CEB-AF18KC-I0
PowerDC 12 V±25%, PoE (IEEE 802.3af)
Power ConsumptionMax. 12.0 W
Power InterfaceØ5.5 mm coaxial power plug
DimensionsØ149 mm × 55 mm (Ø5.9" × 2.2") (Ø × H)
Weight0.524 kg (1.16 lb.)
MaterialMetal + Plastic
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection4 KV
Reset ButtonSupport
Web Client Language20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
RTCSupport
Camera
Max Resolution12 MP
Sensor1/1.7" CMOS
Min. IlluminationColor: 0.03 Lux (F2.0, AGC ON), 0 Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
S/N>52 dB
WDRDWDR
Lens
Focal Length1.8 mm
Iris TypeFixed
Field of View (H)180°
Field of View (V)180°
Field of View (D)180°
IrisF2.0
Lens TypeFixed
DORI
DORI Distance (Lens)1.8 mm
DORI Distance (Detect)43.8 m (143.7 ft.)
DORI Distance (Observe)17.5 m (57.4 ft.)
DORI Distance (Recognize)8.8 m (28.9 ft.)
DORI Distance (Identify)4.4 m (14.4 ft.)
Illuminator
Illumination Distance (IR)15 m (49.3 ft)
Supplemental LightIR
IR On/Off ControlAuto/Manual
Wavelength850 nm
Hình ảnh
Main StreamFisheye View: 12 MP (4000 × 3000)@20 fps; 3000 × 3000@20 fps; 2560 × 2560@25 fps; Panorama View: 12 MP (4000 × 3000)@20 fps; 3000 × 2000@20/25 fps; 3000 × 1500@20/25 fps; PTZ View: 1920 × 1080@20/25 fps
Sub StreamFisheye View: 2000 × 1500@20 fps; 2000 × 2000@25 fps
Video CompressionUltra 265, H.265, H.264, MJPEG
Third StreamFisheye View: D1 (720 × 576)@20/25 fps; CIF (352 × 288)@20/25 fps
H.264 Code ProfileBaseline profile, Main profile, High profile
Video Bit Rate128 Kbps to 16 Mbps
U-codeSupport
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas
ROISupport
Video StreamTriple streams
Live View Display
Hardware DecodingCeiling mount: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view; Table mount: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view; Wall mount: fisheye view, fisheye + 4PTZ, panorama view
Software DecodingCeiling mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye + 4PTZ, fisheye + 8PTZ, 360° panorama + 6PTZ; Table mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye + 4PTZ, fisheye + 8PTZ, 360° panorama + 6PTZ; Wall mount: fisheye view, 180° panorama view, 180° panorama view + 3PTZ, 180° panorama view + 4PTZ, 180° panorama view + 8PTZ
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal, Flip vertical, Flip horizontal, 180°
DewarpingN/A
HLCN/A
BLCSupport
DefogDigital defog
Intelligent
Smart Intrusion PreventionCross line detection, intrusion detection
Statistical AnalysisHeat map (Working with management platform)
Events
Basic DetectionMotion detection, Tampering alarm, Audio detection
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Âm thanh
Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate8 kHz
Lưu trữ
Edge StorageMicroSD, up to 512 GB
Network StorageANR, NAS (NFS)
Mạng
ProtocolsIPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/HostUp to 32 users. 3 user levels: administrator, common user and operator
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
ClientEZStation, APP
Web BrowserPlug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Giao tiếp
Audio I/O1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O2/1
Serial Port1 × RS485
Built-in MicBuilt-in dual-mic
Built-in SpeakerSupport
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output1 BNC, impedance 75 Ω, amplitude 1 V [p-p]
Certification
EMCCE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
SafetyCE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013); IK10 (IEC 62262:2002)
Live View
Maximum Bitstream20

Lưu ý: Một số thông số chưa hiển thị đầy đủ. Vui lòng liên hệ Vietnet để nhận datasheet kỹ thuật chính thức từ nhà sản xuất Uniview.

Ứng dụng phù hợp

  • siêu thị, văn phòng
  • kho bãi, nhà xưởng
  • tòa nhà chung cư
  • cửa hàng, showroom

Hỗ trợ kỹ thuật & Báo giá

Để nhận datasheet kỹ thuật đầy đủ, hướng dẫn lắp đặt và báo giá tốt nhất cho Camera giám sát Uniview IPC86CEB-AF18KC-I0, vui lòng liên hệ Vietnet — đối tác phân phối chính thức của Uniview tại Việt Nam:

  • Hotline: 0908 100 676
  • Website: vietnet.net.vn
  • Email: info@vietnet.net.vn

Datasheet IPC86CEB-AF18KC-I0

Tài liệu thông số kỹ thuật của hãng (PDF, tiếng Anh): Datasheet Uniview IPC86CEB-AF18KC-I0.
