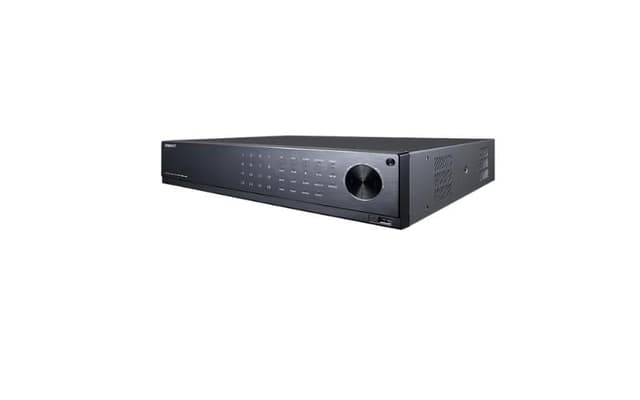

Đầu ghi camera HRD-1642 16 kênh

Mô tả HRD-1642

Đầu ghi camera SAMSUNG WISENET HRD-1642 là loại đầu ghi 16 kênh, nó được trang bị độ phân giải ghi hình AHD (4MP) , TVL, CVL (2MP), ANALOG, hỗ trợ 8 ổ cứng SATA x 8TB, cổng Audio: 16 vào/1 ra, tốc độ ghi hình/NTSC lên tới 480/240 fps@1920 x 1080, tốc độ ghi hình/PAL lên tới 400/200 fps@1920 x 1080, truyền dữ liệu: 4MP

HRD-1642 thuôc dòng đầu ghi camera AHD, đầu ghi camera AHD là camera giá rẻ thường dùng cùng với camera AHD Hanwha Wisenet, đầu ghi thường có nhiều loại: 4 kênh, 8 kênh, 16 kênh, 32 kênh,…

Thông số kỹ thuật chi tiết HRD-1642

Theo datasheet chính thức của hãng.

Hình ảnh
Inputs	16CH BNC : AHD (2MP, 4MP), TVI (2MP), CVI (2MP), NTSC / PAL
Resolution	2560 x 1440, 1920 x 1080, 960 x 480, 704 x 480, 960 x 576, 704 x 576
Frame Rate	480fps, 400fps
Live
Resolution	2560 x 1440, 1920 x 1080, 960 x 480, 704 x 480, 960 x 576, 704 x 576
Multi Screen Display	1 / 4 / 7 / 9 / 13 / 16 / 16A / PIP / Sequence
Hiệu năng
Operating System	Embedded Linux
Recording
Compression	H.264
Record Rate	NTSC : Up to 240fps@4MP / PAL : Up to 200fps@4MP; NTSC : Up to 480fps@1920 x 1080 / PAL : Up to 400fps@1920 x 1080; NTSC : Up to 480fps@1280 x 720, 928 x 480, 704 x 480, 704 x 240, 352 x 240; PAL : Up to 400fps@1280 x 720, 928 x 576, 704 x 576, 704 x 288, 352 x 288
Mode	Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 ~ 30fps(N), 1 ~ 25fps(P))
Event	Video Loss, Motion (Level 1 ~ 10), Alarm Input (16), Tampering (Level Low, Medium, High)
Overwrite Modes	Continuous
Pre-alarm	Up to 30 sec (5, 10, 20, 30 sec)
Post-alarm	Up to 6 hour (5, 10, 20, 30 sec, 1, 3, 5, 10, 20 Min, 1, 2, 3, 4, 5, 6 hour)
Search & Playback
Search Mode	Date / Time, Event, Back up, POS (SD Signal only), Motion (※ All Search Included Preview Function)
Playback Function	Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with i-frame only; Slow forward / backward (1/2x, 1/4x, 1/8x); Step Forward / backward ※ Backward play with I-frame only
Network (IPv4)
Transmission Speed	Record Stream : 4M : 15fps, 1080p / 720p / WD1 / 4CIF / CIF (NTSC : 30fps, PAL : 25fps); Network Stream : WD1 / 4CIF : 12fps, 2CIF / CIF (NTSC : 30fps, PAL : 25fps)
Bandwidth	Up to 64Mbps
Bandwidth Control	Selectable
Stream	Record stream and network stream selectable (at monitoring viewer)
Max. Remote Users	Search 3 / Live unicast 10 / Live multicast 20
Protocol Support	TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP
Monitoring	SSM, WebViewer, SmartViewer, iPOLiS Mobile Viewer
Smart Phone
Platform	Android, iOS
Protocol Support	RTP, RTSP, HTTP
Control	Live (8CH) : Multi-profile support playback (1CH)
Max. Remote Users	Search 3 / Live unicast 10 / multicast 20
Lưu trữ
Internal HDD	Up to 8 SATA HDDs (0~ 6TB HDD)
External (e-SATA Interface)	e-SATA, USB (for Backup)
File Format (Backup)	BU (DVR player), SEC (Include player), AVI
Bảo mật
Password Protection	1 Admin, 10 Group, 10 User per 1 Group
Data Authentication	Watermark
Monitors
VGA	1 VGA (1920 x 1080, 1280 x 1024, 1280 x 720)
HDMI	1 HDMI (4K (3840 x 2160), 2K (2560 x 1440), 1920 x 1080, 1280 x 1024, 1280 x 720)
Spot Composite	BNC (1CH) ※ Included OSD on screen, Multi mode support
Âm thanh
Inputs / Output	16CH line in (Built-in 4CH, Option : Audio extension cable) / 1CH line out
Compression	G.711
Sampling Rate	8KHz
Alarm
Inputs / Output	Terminal 16 inputs (NO/NC) / Terminal 4 Relay outputs (NO/NC), Rating : Max. DC18V 2A, Typical DC12V 2A
Remote Notification	Notification Via E-mail
Connections
Ethernet	1 RJ45 10/100/1000 Base-T
Serial Interface	RS-485 (Full duplex) for PTZ, Samsung system keyboard
USB	1 port (USB 3.0, Rear), 1 port (USB 2.0, Front)
e-SATA	2 External SATA ports
Application Support	Mouse, IR Remocon
RS-485 Protocol	Samsung-T/E, Pelco-D/P, Phillips, AD, DIAMOND, ERNA, KALATEL, VCL TP, VICON, ELMO, GE
Coax Protocol	NTSC/PAL : Pelco-C (Coaxitron), AHD : ACP (AHD Coax Protocol)
Điện
Input Voltage / Current	100 ~ 240V AC ±10%, 50/60 Hz
Power Consumption	Max. 62W (1 x 2T HDD)
Môi trường
Operating Temperature	+0°C ~ +40°C (+32°F ~ +104°F)
Operating Humidity	20% ~ 85% RH
Cơ khí
Dimensions (WxHxD)	440 x 88.0 x 384.8mm (17.32” x 3.46” x 15.15”)
Weight (With hard disks)	Approx. 5.78Kg (12.74 lb)
Language
GUI	English, French, German, Spanish, Italian, Russian, Polish, Czech, Turkish, Netherlands, Portuguese, Swedish, Danish, Rumania, Serbia, Croatia, Hungary, Greek, Finnish, Norwegian, Korean, Japanese, Chinese (Traditional), Thai
Web Browser	English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese (Simplified), Japanese, Thai

Tài liệu/ Download thông số kỹ thuật

Tài liệu thông số kỹ thuật (PDF): Datasheet HRD-1642.
