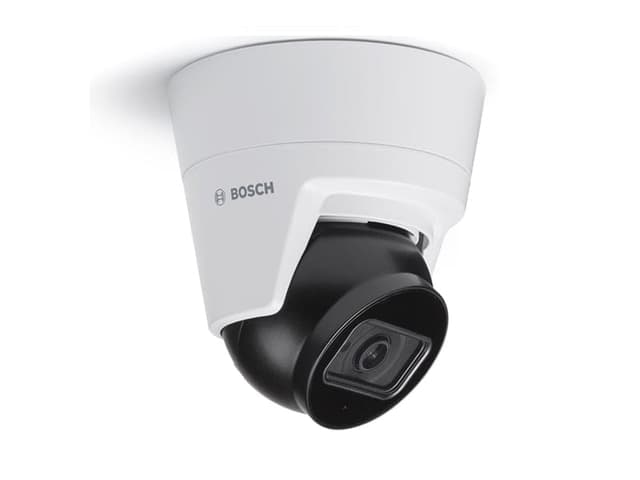

Camera giám sátCamera Bosch NTE-3503-F03L Flexidome IP Turret 3000i IR
Liên hệ báo giá
Giá: Vui lòng liên hệ
Mã sản phẩm: NTE-3503-F03L
Dòng sản phẩm: Camera Bosch
Thương hiệu: Bosch
Nhà phân phối: VIET NET
- Hàng chính hãngCO/CQ đầy đủ
- Bảo hành chuẩn hãngTheo chính sách của hãng
- Giao hàng toàn quốcKho HCM & Hà Nội
- Kỹ thuật 24/7Tư vấn – lắp đặt
Mô tả sản phẩm

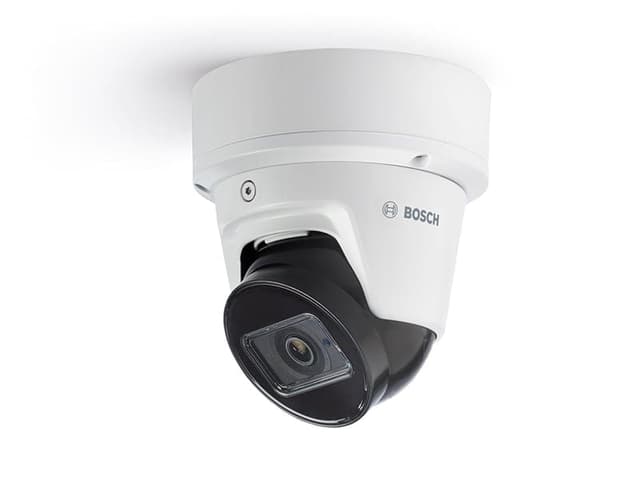

Mô tả camera NTE-3503-F03L
Camera Bosch NTE-3503-F03L Flexi Dome IP Micro 3000i 5MP là một camera an ninh tháp pháo chuyên nghiệp với tầm nhìn ban đêm hồng ngoại 15m, phù hợp với các ứng dụng giám sát ngoài trời. Camera có độ phân giải 5MP cao, cung cấp hình ảnh chi tiết và sắc nét. Nó cũng có tính năng High Dynamic Range (HDR) 120dB, giúp camera tạo ra hình ảnh rõ ràng ngay cả trong điều kiện ánh sáng chói hoặc tối
Tính năng chống sương mù thông minh tự động điều chỉnh các thông số để có hình ảnh đẹp nhất trong cảnh sương mù (có thể chuyển đổi)
Thông số kỹ thuật chi tiết NTE-3503-F03L
Theo datasheet chính thức của hãng.
| Certifications and approvals | |
|---|---|
| Emission | EN 55032; CFR 47 FCC part 15, Class B; AS/NZS CISPR 32 |
| Immunity | EN 50130-4; EN 50121-4 |
| Environmental | EN 50130-5 (Class IV); EN 60068-2-1, EN 60068-2-2, EN 60068-2-6, EN 60068-2-18, EN 60068-2-27, EN 60068-2-30, EN 60068-2-52, EN 60068-2-75, EN 60068-2-78, EN 60068-2-5 |
| Safety | EN 62368-1; EN 60950-22; UL 62368-1; UL 60950-22; IEC 62471 (IR safety); CAN/CSA-C22.2 No. 60950-1; CAN/CSA-C22.2 No. 60950-22-07 |
| Image performance | IEC 62676-5 |
| HD | SMPTE 296M-2001 (Resolution: 1280x720); SMPTE 274M-2008 (Resolution: 1920x1080) |
| Color representation | ITU-R BT.709-6 |
| ONVIF conformance | EN 50132-5-2; EN 62676-2 |
| Impact protection | EN 62262 (IK10) |
| Water/dust protection | EN 60529 (IP66) |
| Environmental | EN 50581 (RoHS) |
| Marks | CE, FCC, cULus, WEEE, RCM, VCCI, EAC, CMIM |
| Nguồn | |
| Input voltage | POE IEEE 802.3af / 802.3 at Type 1, Class 3; 12 VDC ±30% |
| Power consumption (typical / maximum) | PoE: 3.5 W / 10.5 W; 12 VDC: 3.1 W / 9.5 W |
| Sensor - 5.3 MP | |
| Sensor type | 1/2.9 inch CMOS |
| Effective pixels | 3072 (H) x 1728 (V) |
| Video performance - Sensitivity | |
| Measurement | Measured according to IEC 62676 Part 5 (1/30, F1.6 or F2.2) |
| Color | 0.5 lx |
| Mono | 0.08 lx |
| With IR | 0.0 lx |
| Video performance - Dynamic range | |
| High Dynamic Range | 120 dB WDR |
| Measured according to IEC 62676 Part 5 | 101 dB |
| Quang | |
| Day/Night | Switchable IR-cut filter |
| Night vision | |
| Distance | 15 m (49 ft) |
| LED | 2 LEDs, 850 nm |
| IR intensity | Adjustable |
| Video streaming | |
| Video compression | H.265; H.264; M- JPEG |
| Sensor modes | 20 fps, HDR, 3072 x 1728 (5.3 MP); 25 fps, HDR, 2720 x 1530 (4.1 MP) |
| Streaming | Multiple configurable streams in H.264 or H.265 and M-JPEG, configurable frame rate and bandwidth. Regions of Interest (ROI) |
| GOP structure | IP |
| Encoding interval | 1 to 20 fps (5.3 MP); 1 to 25 fps (4.1 MP) |
| Signal-to-noise ratio (SNR) | >55 dB |
| Video resolution - 5 MP | |
| 5.3 MP | 3072 x 1728 |
| 4.1 MP | 2720 x 1530 |
| 3 MP | 2304 x 1296 |
| 1080p HD | 1920 x 1080 |
| 720p HD | 1280 x 720 |
| SD | 768 x 432 |
| D1 | 720 x 480 |
| VGA | 640 x 480 |
| Camera installation | |
| Mirror image | On / Off |
| Rotation | 0° / 90° / 180° / 270° |
| Camera LED | Enable / Disable |
| Video functions - color | |
| Adjustable picture settings | Contrast, Saturation, Brightness |
| White Balance | 2500 to 10000K, 4 automatic modes (Basic, Standard, Sodium lamp, Dominant color), Manual mode and Hold mode |
| Video functions - ALC | |
| Shutter | Automatic Electronic Shutter (AES); Fixed (1/25[30] to 1/15000) selectable; Default shutter |
| Day/Night | Auto (adjustable switch points), Color, Monochrome |
| Video functions - enhance | |
| Sharpness | Sharpness enhancement level selectable |
| Backlight compensation | On/off |
| Contrast enhancement | On/off |
| Noise reduction | Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments |
| Intelligent defog | Intelligent Defog automatically adjusts parameters for best picture in foggy or misty scenes (switchable) |
| Video content analysis | |
| Analysis type | Essential Video Analytics |
| Features | Rule based alarms and tracking, Line crossing, Enter / leave field, Follow route, Loitering, Idle / removed object, People counting, Crowd density estimation, 3D tracking |
| Additional functions | |
| Privacy Masking | Eight independent areas, fully programmable |
| Display stamping | Name, Logo, Time; Alarm message |
| Pixel counter | Selectable area |
| Local storage | |
| Internal RAM | up to 5 s pre-alarm recording |
| Memory card slot | microSDHC / microSDXC SD card slot |
| Industrial SD cards | Extreme lifetime and health monitoring support that provides early service indication |
| Input/output | |
| Analog video out | CVBS: 1.0 Vp-p / 75Ω composite, 720 x 480 (IN) 720 x 576(P) for installation |
| Audio line in | Max input 1 Vrms |
| Audio line out | 16 Ohm typical; output 0.875 Vrms |
| Alarm input | Short or DC 5 V activation |
| Alarm output | Maximum load: 12 VDC / 50 mA |
| Ethernet | RJ45 connector |
| Audio streaming | |
| Standard | G.711, 8 kHz sampling rate; L16, 16 kHz sampling rate; AAC-LC, 48 kbps at 16 kHz sampling rate; AAC-LC, 80 kbps at 16 kHz sampling rate |
| Signal-to-Noise Ratio | >50 dB |
| Audio Streaming | Full-duplex / half duplex |
| Mạng | |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox™, CHAP, digest authentication |
| Encryption | TLS1.0/1.2, AES128, AES256 |
| Ethernet | 10/100 Base-T |
| Interoperability | ONVIF Profile S; ONVIF Profile G; ONVIF Profile T |
| Cơ khí | |
| Dimensions (Ø x H) | 137 x 135 mm (5.39 x 5.31 in) |
| Weight (approx.) | 1132.90 g (2.49 lbs) |
| Mounting | Surface mount |
| Color | White (RAL9003) |
| 3-axis adjustment (pan/tilt/rotation) | Pan: 0° to 350°; Tilt: 0° to 78°; Roll: 0° to 360° |
| Dome bubble | Polycarbonate, clear with anti-scratch coating |
| Môi trường | |
| Operating temperature (continuous) | -30 °C to +50 °C (-22 °F to +122 °F) |
| Storage temperature | -30 °C to +70 °C (-22 °F to +158 °F) |
| Humidity | 5% to 100% relative humidity (condensing); 5% to 93% relative humidity (non condensing) |
| Storage humidity | Up to 98% relative humidity |
| Impact resistance | IK10 |
| Water/dust protection | IP66 |
| Thông tin đặt hàng | |
| NTE-3503-F03L | Turret camera 5MP HDR 100° IP66 IK10 IR; IP turret camera with tamper and motion detection; 5MP resolution; 100º lens; with built-in IR illuminator; outdoor; IP66; IK10; EVA.; Order number NTE-3503-F03L | F.01U.393.630; F.01U.385.766 |
Datasheet NTE-3503-F03L
Tài liệu thông số kỹ thuật của hãng (PDF, tiếng Anh): Datasheet Bosch NTE-3503-F03L.
